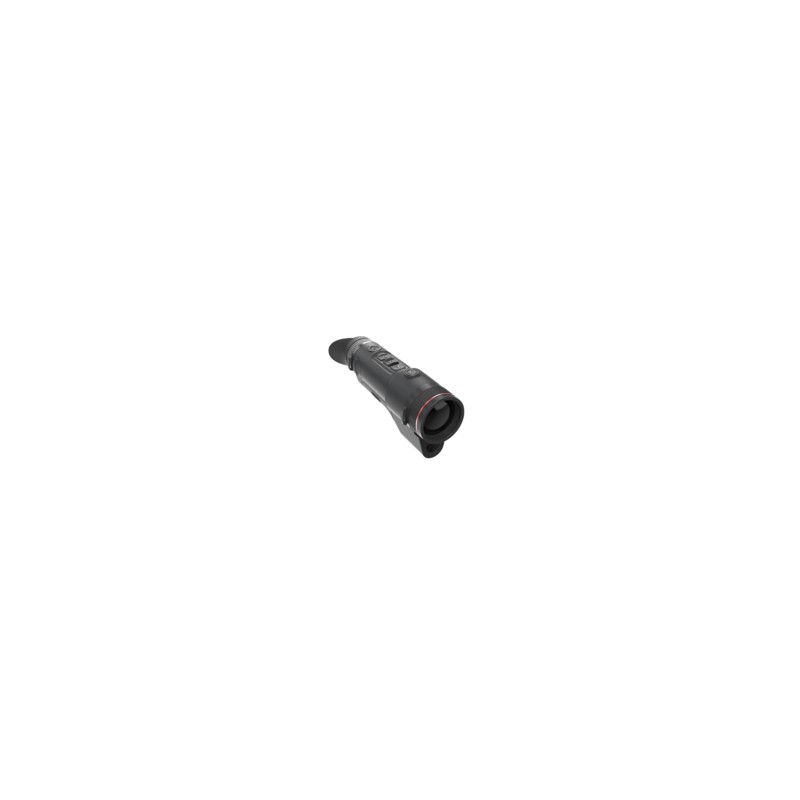

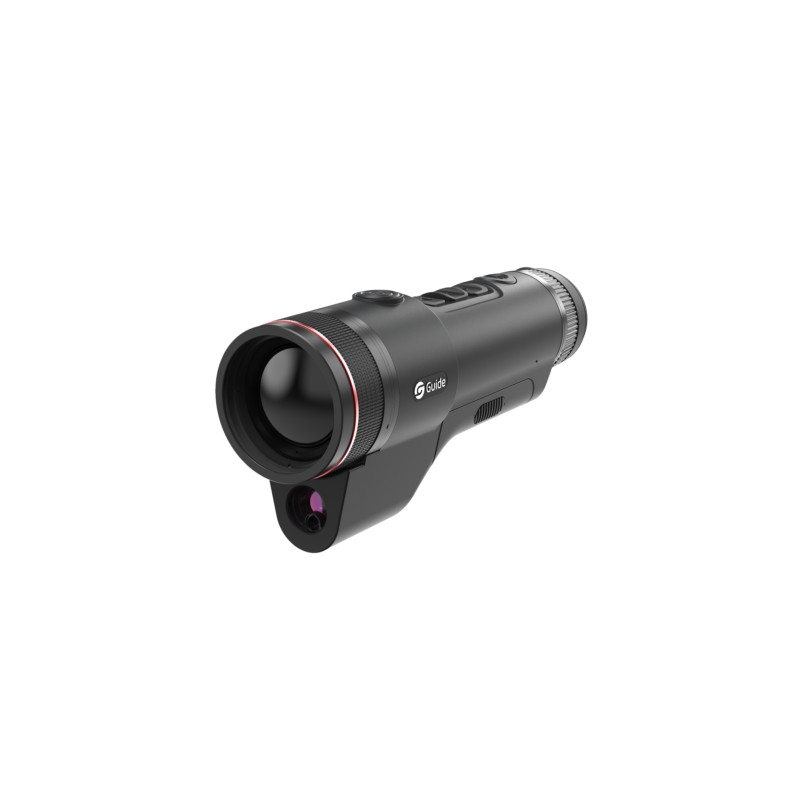

Guide TJ630LP Thermal Monocular
$4,140.00
Tax included
New and Improved Guide TJ630LP Thermal Monocular
This series has upgraded its hardware configuration and software functions to provide better picture clarity and operation making it the perfect hunting companion It has a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5″ ultra-large AMOLED display presenting you with a visual effect like a home theater. and a top pick for hunters that are after a top of the range unit for picking up heat signatures at night, also with a laser range finder triggered by one button providing accurate distancing of up to 1500 metres
Key Features:
- 640 x 512 @12μm Thermal Sensor
- NETD <20mK
- 35mm Lens
- 1800m Detection Range
- 1500m Laser Rangefinder
- 1600×1200px 0.5” AMOLED
- 9 Hour Battery Life
Guide TJ630LP Thermal Monocular
The upgraded TJ LRF Pro Series boasts an advanced 12μm infrared detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished in complete darkness.
The ultra-large 1600×1200 AMOLED display presents you with an amazing visual effect like a home theater, bringing it to new heights in picture clarity and observation comfort.
The laser rangefinder module of TJ LRF Pro Series has been upgraded to extend the maximum measurement distance to 1500 meters.
Multiple focal lengths give TJ LRF Pro Series convenience for long-distance observation and hunting, the 50mm F1.0 lens can detect targets up to 2600m.
Both left and right hands can operate easily. Left/right eye masks and hand straps can be switched in one step.
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 3.31x~26.48x | |||
| Detection range |
1800m/1950yd |
|||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.5'' AMOLED 1600×1200 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 9 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 584/20.60 | |||
| Size (mm/in) | 247×101×70/9.72×3.98×2.76 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
TIGUI078 TJ630LP
1 Item
Specific References
10 other products in the category
New and Improved Guide TJ630LP Thermal Monocular
This series has upgraded its hardware configuration and software functions to provide better picture clarity and operation making it the perfect hunting companion It has a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5″ ultra-large AMOLED display presenting you with a visual effect like a home theater. and a top pick for hunters that are after a top of the range unit for picking up heat signatures at night, also with a laser range finder triggered by one button providing accurate distancing of up to 1500 metres
Key Features:
- 640 x 512 @12μm Thermal Sensor
- NETD <20mK
- 35mm Lens
- 1800m Detection Range
- 1500m Laser Rangefinder
- 1600×1200px 0.5” AMOLED
- 9 Hour Battery Life
